Product Details:
|
| Type: | Inch Taper Roller Bearing | Roller Bearing Type: | Taper |
|---|---|---|---|
| Weight: | 1.0 Kg/pcs | Number Of Row: | 09067/09195 |
| Cage Material: | Single Row | Static Load Rating: | 70200N |
| Inch: | 19.05 X 49.22 X 14.28 | Brand: | QRL/Oem/Neutr |
| Highlight: | 09067/09195 Tapered Roller Bearing,3419491484 Tapered Roller Bearing |
||
Tapered Roller Bearing Specification

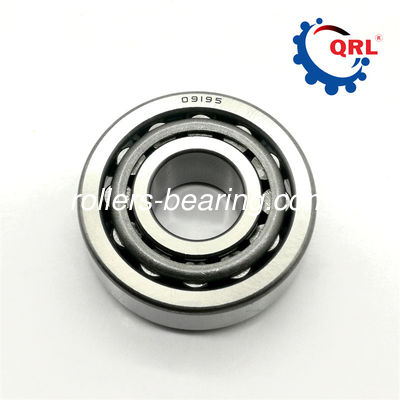

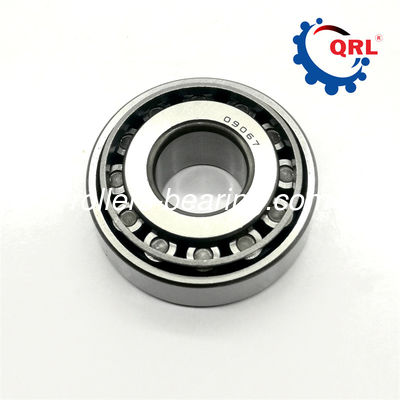

Timken 09067/09195 Tapered Roller Bearing
19.05 x 49.22 x 14.28 mm
This is a single-row tapered roller bearing with the model number 09067/09195. This is one of the most basic and widely used type of tapered roller bearings. The bore diameter of this bearing is 19.05 mm, the outer diameter is 49.22 mm, and the cup width (race width) is mm.
The bearing consists of two rings (inner and outer) and rolling elements (tapered rollers) which are connected by a cage. The inner ring with a cage and rolling elements is a CONE. The outer ring is a CUP.
The design of tapered roller bearings suites for the perception of combined (radial and axial) loads. Tapered roller bearings have a split construction: the inner ring with the rollers and separator create the unit, that can be mounted separately from the outer ring.
Product number
| Part No. | BOUNDARY DIMENSIONS (in m.m.) | LOAD RATING | LIMITING SPEED (R.P.M.) | MASS | ||||||
| d | D | B | C | T | STATIC (Co) KN | DYNAMIC (C) KN | Grease | Oil | (~ Kg.) | |
| LM 102949 / LM 102910 | 45.242 | 73.431 | 19.812 | 15.748 | 19.558 | 76 | 54 | 4800 | 6400 | 0.307 |
| LM 603049 / LM 2603011 | 45.242 | 77.788 | 19.842 | 15.08 | 19.842 | 70.3 | 55.3 | 5850 | 7500 | 0.37 |
| HM 204049 / HM 204010 | 45.987 | 90.975 | 32 | 26.5 | 32 | 150.5 | 119.1 | 4300 | 5600 | 0.94 |
| 359-S/354X | 46.038 | 85 | 21.692 | 17.462 | 20.635 | 89.5 | 76.1 | 4400 | 5800 | 0.49 |
| HM 804846 / HM 804810 | 47.625 | 95.25 | 29.37 | 23.02 | 30.162 | 140 | 104.3 | 4000 | 5300 | 0.98 |
| 528/522 | 47.625 | 101.6 | 36.068 | 26.988 | 34.925 | 169 | 137.3 | 3800 | 5000 | 1.29 |
| CK 50 K / 3720 | 50 | 93.264 | 30.302 | 23.812 | 30.162 | 148.9 | 110.9 | 4000 | 5300 | 0.87 |
| JW 5049 / JW 5010 | 50 | 105 | 29 | 22 | 32 | 145.5 | 114.3 | 3400 | 4500 | 1.23 |
| 370A / 362A | 50.8 | 88.9 | 22.225 | 16.513 | 20.638 | 91 | 76.5 | 4300 | 5600 | 0.51 |
| 28580 / 25821 | 50.8 | 92.075 | 25.4 | 19.845 | 24.607 | 116.1 | 84.2 | 4000 | 5300 | 0.7 |
| 455/452 | 50.8 | 107.95 | 29.317 | 27 | 32.557 | 148 | 115 | 3500 | 4700 | 1.34 |
| 3780 / 3720 | 50.8 | 93.264 | 30.302 | 23.812 | 30.162 | 148.9 | 110.9 | 4000 | 5300 | 0.84 |
| 33889 / 33822 | 50.8 | 95.25 | 28.575 | 22.225 | 27.783 | 140 | 107.3 | 3900 | 5200 | 0.88 |
Taper Roller Bearings Applications
