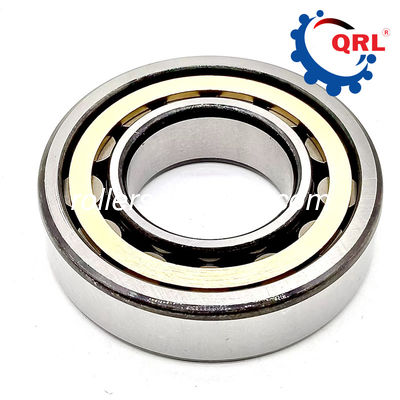

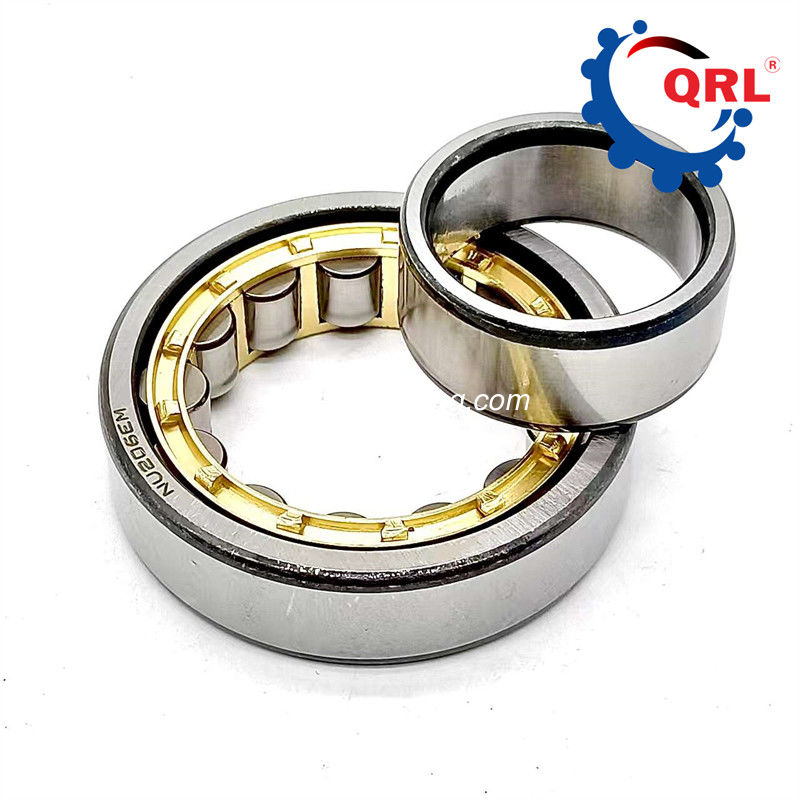

Product Details:
|
| Number Of Row: | NU206EM | Type: | Cylindrical Roller Bearing |
|---|---|---|---|
| Innerring: | 30x62x16mm | Weight: | 0.61 Kg |
| Stock: | 5000pcs | Brand: | Neutral Packing/OEM |
| Application: | Combustion Turbines | ||
| Highlight: | NU206EM Cylindrical Roller Bearing,30x62x16mm Cylindrical Roller Bearing |
||
| Inside Diameter (d) = 30mm |
| Outside Diameter (D) = 62mm |
| Width (B) = 16mm |
| Outer Ring Internal Diameter (E) = Not Applicable |
| Inner Ring External Diameter (F) = 37.5mm |
| Load Rating(s): |
| Basic Dynamic Load Rating (kN) = 39.7 |
| Basic Static Load Rating (kN) = 37.9 |
| Speed Limitation(s): |
| Allowable Rotational Speed - Grease Lubrication (r/min) = 10000 |
| Allowable Rotational Speed - Oil Lubrication (r/min) = 13000 |
Cylindrical Roller Bearing Description
Cylindrical roller bearings (CRBs) have a simple structure of cylindrical rollers in linear contact with the raceways. They offer high load capacity under primarily radial loads. Low friction between the rollers and ring ribs makes these bearings suited for high speed rotation.
Cylindrical Roller Bearing Product number
| Part No. | BOUNDARY DIMENSIONS (in m.m.) | MASS | ||
| d | D | T | (~ Kg.) | |
| NJ2205-3VHSH | 25 | 52 | 20.6 | |
| RLSI82205 | 25 | 46.52 | 18 | |
| SC050615V | 25 | 62 | 15.5 | |
| SC050617CV3 | 25 | 62 | 17 | |
| SC050621V | 25 | 62 | 21 | |
| CBK258-171 | 23 | 52 | 15 | |
| 06NF0824-23NC3 | 30 | 80 | 24 | |
| 06NU0721VH | 30 | 72 | 21 | |
| 06NUP0618 | 30 | 62 | 18 | 0.243 |
| 06NUP0820ANRS0C3 | 35 | 75 | 20 | 0.44 |
| AG503001 | 30 | 49 | 20 | |
| CBK239 | 30 | 62 | 19 | |
Cylindrical Roller Bearing Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
