Product Details:
|

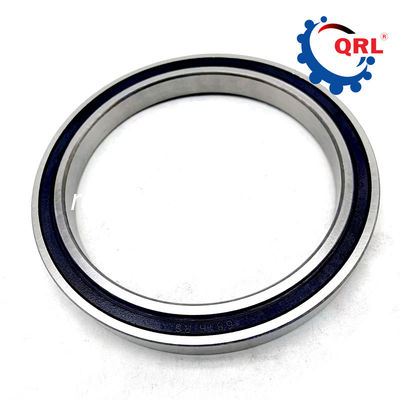

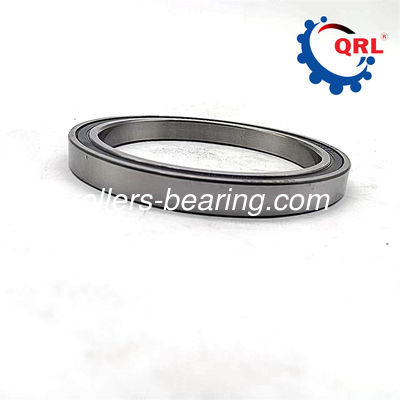

| Type: | Deep Groove Ball Bearing | Number: | 6816-2RS |
|---|---|---|---|
| Size: | 80x100x10MM | Seals Type: | 2RS ZZ OPPE |
| WEIGHT: | 0.2 KG | Applicable Models:: | Industrial Machinery |
| Sample: | 6-16 Working Days Depends On Quantity | Number Of Row: | Single Row |
| Highlight: | 80x100x10MM Deep Groove Ball Bearing,Industrial Machinery Deep Groove Ball Bearing,6816-2RS Deep Groove Ball Bearing |
||
| Inner Diameter: | 80mm |
| Outer Diameter: | 100mm |
| Width: | 10mm |
| Closure Type: | Rubber Sealed |
| Material: | Chrome Steel SAE-52100 |
| Lubrication: | Chevron SRI-2 Grease |
| Static Load: | 2,990 lbf |
| Dynamic Load: | 2,850 lbf |
| Speed Limit: | 5,700 RPM |
| Country of Origin: | China |
Deep Groove Ball Bearing Description
Deep-groove types may have a flanged oute
r ring, special inner ring width, thin-walled cross-sections, or a special shape for synchros. These bearings can come open, sealed, or shielded. An assortment of models suit both general and special applications. Available in open, sealed, and shielded types.
Deep Groove Ball Bearing Product number
| Bearing NO | (mm) | (Kn)Dynamic Load RatingCr | (Kn)Static Load RatingCor | (r/min) | ||||
| Boundary Dimensions | Limit Rotational Speed | (Kg) | ||||||
| d | D | B | Grease Lubrication | Oil Lubrication | Weight | |||
| 6300 | 10 | 35 | 11 | 7.65 | 3.47 | 22000 | 26000 | 0.0532 |
| 6301 | 12 | 37 | 12 | 9.72 | 4.2 | 20000 | 24000 | 0.0574 |
| 6302 | 15 | 42 | 13 | 11.44 | 5.43 | 17000 | 20000 | 0.0804 |
| 6303 | 17 | 47 | 14 | 13.58 | 6.58 | 15000 | 18000 | 0.1096 |
| 6304 | 20 | 52 | 15 | 15.94 | 7.88 | 14000 | 17000 | 0.1417 |
| 6305 | 25 | 62 | 17 | 22.38 | 11.49 | 11000 | 13000 | 0.2193 |
| 6306 | 30 | 72 | 19 | 27 | 15.19 | 9500 | 12000 | 0.3498 |
| 6307 | 35 | 80 | 21 | 33.36 | 19.21 | 8500 | 10000 | 0.4542 |
| 6308 | 40 | 90 | 23 | 40.75 | 24.01 | 7500 | 9000 | 0.6394 |
| 6309 | 45 | 100 | 25 | 52.86 | 31.83 | 6700 | 8000 | 0.8368 |
| 6310 | 50 | 110 | 27 | 61.86 | 37.49 | 6000 | 7500 | 1.0822 |
| 6311 | 55 | 120 | 29 | 71.5 | 45 | 5600 | 6700 | 1.35 |
| 6312 | 60 | 130 | 31 | 82 | 52 | 5300 | 6300 | 1.7 |
| 6313 | 65 | 140 | 33 | 92.5 | 60 | 4800 | 6000 | 2.08 |
Deep Groove Ball Bearing Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
