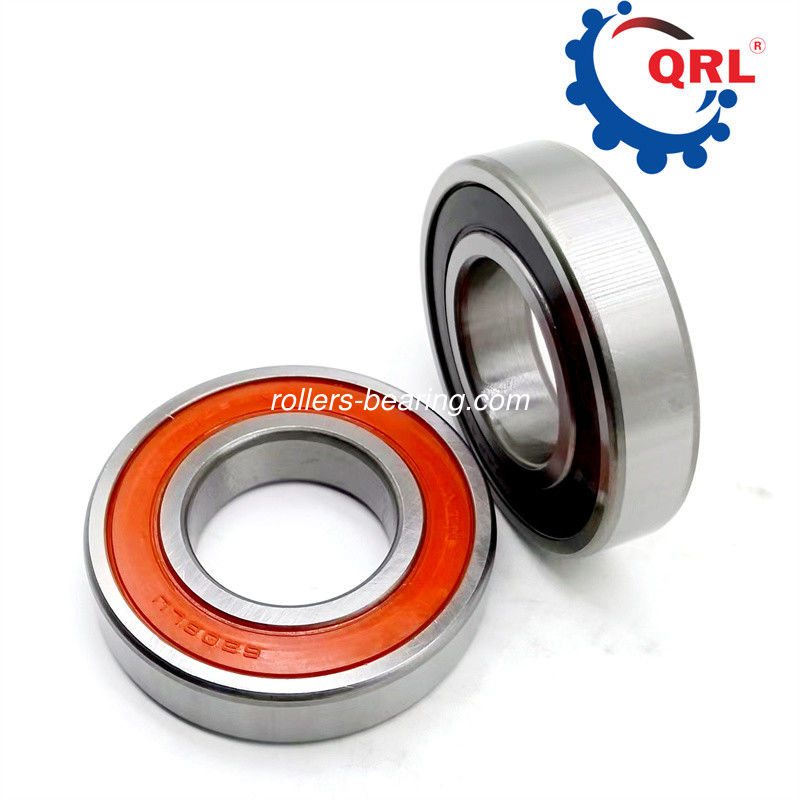

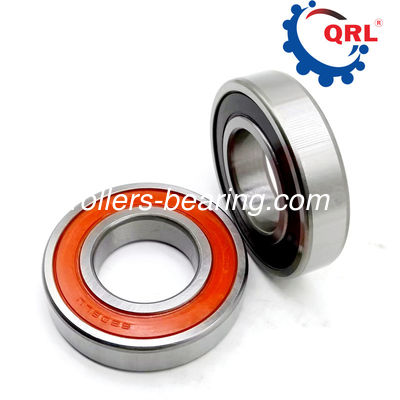

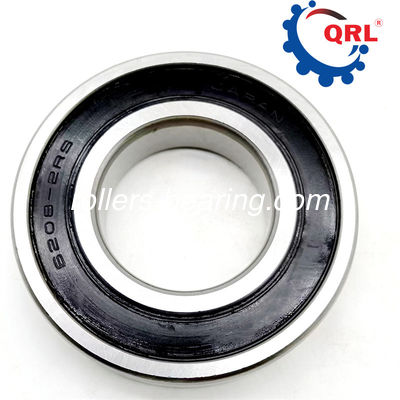

Product Details:
|
| Type: | Deep Groove Ball Bearing | Number: | 6208-2RS 6208DDU 6208LLU |
|---|---|---|---|
| Size: | 40x80x18 Mm | Seals Type: | 2RS ZZ OPPE |
| WEIGHT: | 0.2 KG | Applicable Models:: | Industrial Machinery |
| Sample: | 6-16 Working Days Depends On Quantity | Number Of Row: | Single Row |
| Highlight: | 6208LLU Sealed Ball Bearings,6208-2RS Sealed Ball Bearings,6208DDU Sealed Ball Bearings |
||
| CAGE TYPE: | STEEL |
| CLEARANCE: | STANDARD |
| DYNAMIC LOAD RATING (KN): | 29.5 |
| STATIC LOAD RATING (KN): | 18.1 |
| REFERENCE SPEED RATING (R/MIN): | 13000 |
| LIMITING SPEED RATING (R/MIN): | 8800 |
Deep Groove Ball Bearing Description
Deep-groove types may have a flanged oute
r ring, special inner ring width, thin-walled cross-sections, or a special shape for synchros. These bearings can come open, sealed, or shielded. An assortment of models suit both general and special applications. Available in open, sealed, and shielded types.
Deep Groove Ball Bearing Product number
| Bearing NO | (mm) | (Kn)Dynamic Load RatingCr | (Kn)Static Load RatingCor | (r/min) | ||||
| Boundary Dimensions | Limit Rotational Speed | (Kg) | ||||||
| d | D | B | Grease Lubrication | Oil Lubrication | Weight | |||
| 6300 | 10 | 35 | 11 | 7.65 | 3.47 | 22000 | 26000 | 0.0532 |
| 6301 | 12 | 37 | 12 | 9.72 | 4.2 | 20000 | 24000 | 0.0574 |
| 6302 | 15 | 42 | 13 | 11.44 | 5.43 | 17000 | 20000 | 0.0804 |
| 6303 | 17 | 47 | 14 | 13.58 | 6.58 | 15000 | 18000 | 0.1096 |
| 6304 | 20 | 52 | 15 | 15.94 | 7.88 | 14000 | 17000 | 0.1417 |
| 6305 | 25 | 62 | 17 | 22.38 | 11.49 | 11000 | 13000 | 0.2193 |
| 6306 | 30 | 72 | 19 | 27 | 15.19 | 9500 | 12000 | 0.3498 |
| 6307 | 35 | 80 | 21 | 33.36 | 19.21 | 8500 | 10000 | 0.4542 |
| 6308 | 40 | 90 | 23 | 40.75 | 24.01 | 7500 | 9000 | 0.6394 |
| 6309 | 45 | 100 | 25 | 52.86 | 31.83 | 6700 | 8000 | 0.8368 |
| 6310 | 50 | 110 | 27 | 61.86 | 37.49 | 6000 | 7500 | 1.0822 |
| 6311 | 55 | 120 | 29 | 71.5 | 45 | 5600 | 6700 | 1.35 |
| 6312 | 60 | 130 | 31 | 82 | 52 | 5300 | 6300 | 1.7 |
| 6313 | 65 | 140 | 33 | 92.5 | 60 | 4800 | 6000 | 2.08 |
Deep Groove Ball Bearing Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
