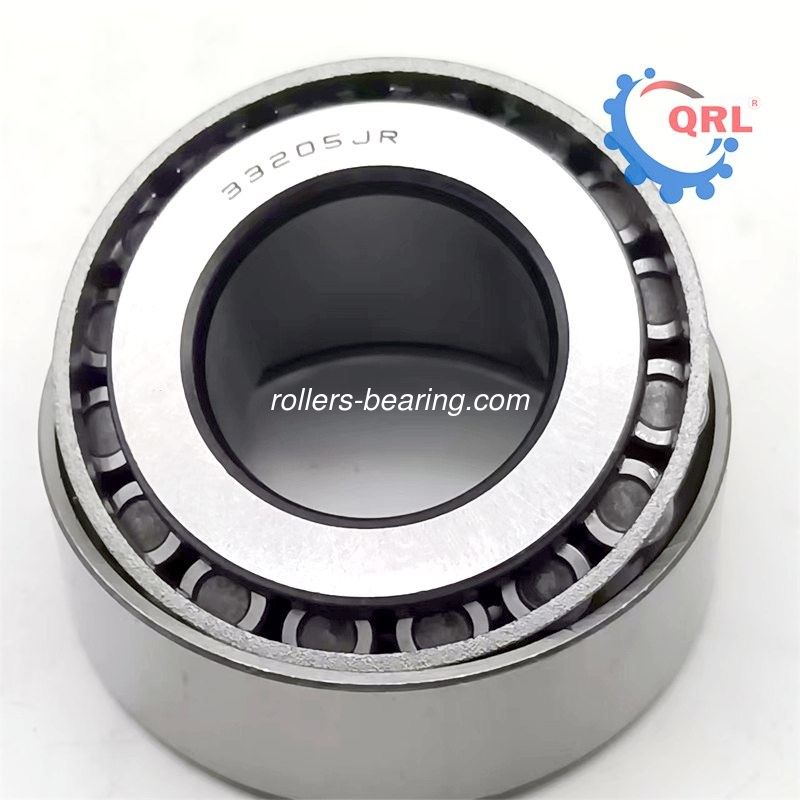

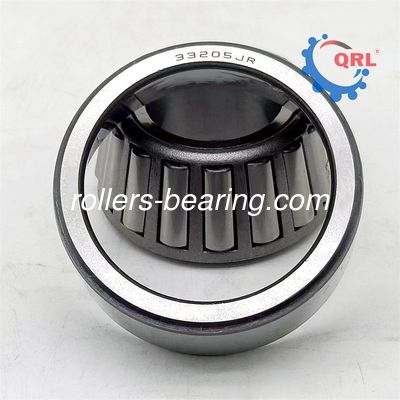

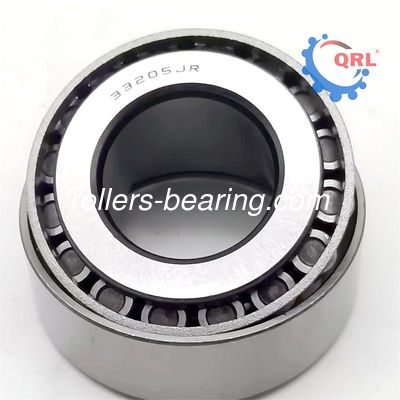

Product Details:
|
| Type: | Taper Roller Bearing | Dimensions: | 33205 |
|---|---|---|---|
| Size: | 25x52x22mm | Weight: | 0.61 Kg |
| Brand Name:: | OEM-QRL | Service:: | OEM Customized Services |
| Application:: | Engineering Machinery | Vibration: | V1 V2 V3 V4 |
| Highlight: | 33206 Tapered Roller Bearing,33205 Tapered Roller Bearing,22mm Tapered Roller Bearing |
||
|
Name
|
Taper Roller Bearing | |||
|
Model Number
|
33205 | |||
|
Brand
|
SHT Or Customized Logo
|
|||
|
Material
|
Chrome Steel (GCR15/SAE51200)
|
|||
|
Precision
|
P0, P6, P5, P4, P2 or as requested | |||
|
Quality Standard
|
ISO9001:2008
|
|||
|
Service
|
ODM & OEM, Customized Packing & Logo acceptable
|
|||
Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.
Tapered Roller Bearing Product number
| Model No. | Model No. | Model No. | Model No. | Model No. | Model No. | Model No. | Model No. |
| 30202 | 30302 | 32204 | 32304 | 32004 | 33005 | 31303 | 30303D |
| 30203 | 30303 | 32205 | 32305 | 32005 | 33006 | 31304 | 30304D |
| 30204 | 30304 | 32206 | 32306 | 32006 | 33007 | 31305 | 30305D |
| 30205 | 30305 | 32207 | 32307 | 32007 | 33008 | 31306 | 30306D |
| 30206 | 30306 | 32208 | 32308 | 32008 | 33009 | 31307 | 30307D |
| 30207 | 30307 | 32209 | 32309 | 32009 | 33010 | 31308 | 30308D |
| 30208 | 30308 | 32210 | 32310 | 32010 | 33011 | 31309 | 30309D |
| 30209 | 30309 | 32211 | 32311 | 32011 | 33012 | 31310 | 30310D |
| 30210 | 30310 | 32212 | 32312 | 32012 | 33013 | 31311 | 30311D |
| 30211 | 30311 | 32213 | 32313 | 32013 | 33014 | 31312 | 30312D |
| 30212 | 30312 | 32214 | 32314 | 32014 | 33015 | 31313 | 30313D |
| 30213 | 30313 | 32215 | 32315 | 32015 | 33016 | 31314 | 30314D |
| 30214 | 30314 | 32216 | 32316 | 32016 | 33017 | 31315 | 30315D |
| 30215 | 30315 | 32217 | 32317 | 32017 | 33018 | 31316 | 30316D |
| 30216 | 30316 | 32218 | 32318 | 32018 | 33019 | 31317 | 30317D |
| 30217 | 30317 | 32219 | 32319 | 32019 | 33020 | 31318 | 30318D |
| 30218 | 30318 | 32220 | 32320 | 32020 | 33021 | 31319 | 30319D |
| 30219 | 30319 | 32221 | 32321 | 32021 | 33022 | 31320 | 30320D |
| 30220 | 30320 | 32222 | 32322 | 32022 | 33024 | 31322 | 30322D |
Taper Roller Bearings Applications
Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.
